Zubax Robotics

AmpDrive AD0505 "Myxa" ESC

AmpDrive AD0505 "Myxa" ESC

SKU: SKU: MYXA-A0

Regular price €99.00
Regular price Sale price €99.00
Sale Sold out
Model

AD0505 "Myxa" is a high-end PMSM FOC motor controller (FOC ESC) for light unmanned aircraft and watercraft.

AD0505 is designed for use in propulsion systems of light unmanned aerial, underwater, and surface vehicles. The controller provides up to 1200 W of continuous power output and supports a wide range of operating voltages from 13 to 51 V (Li-ion 4–12 S).

AmpDrive AD0505 "Myxa" comes with Telega v1 (Cyphal) firmware installed by default. If you want Telega v0 (UAVCAN) firmware, please add a note on the cart page. The differences are explained here.

Note that AD0505 "Myxa" ships without cables. Please add the necessary cable set to your order manually.

Browse cables and accessories for Zubax Myxa (none included by default).

More info is available at the product home page.

More information

Enclosure options

The following enclosure options are available. Regardless of the chosen enclosure option, all versions of Myxa are conformal-coated, which provides resilience against moisture, aggressive chemicals, corrosion, and abrasion. See the pictures for details.

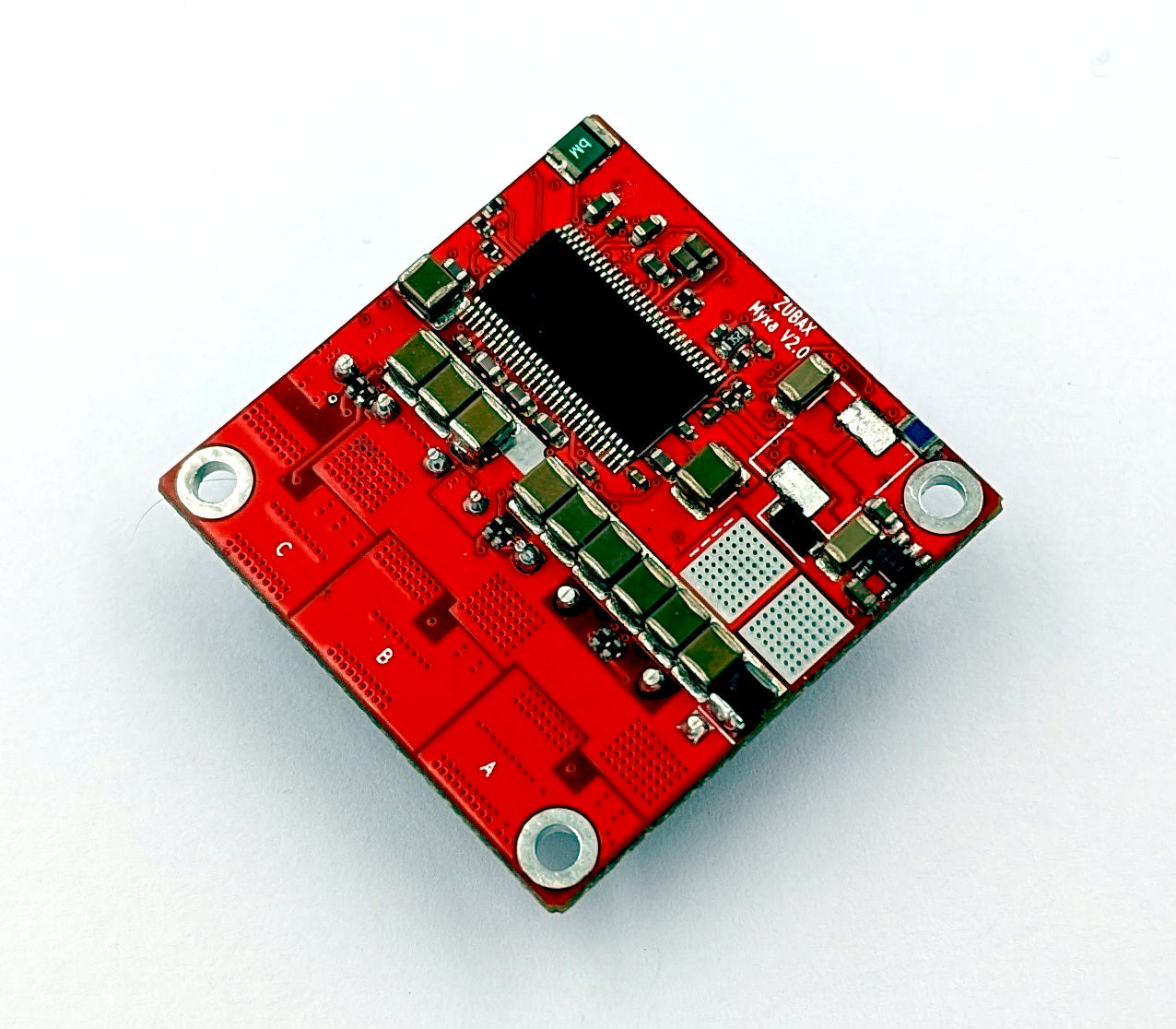

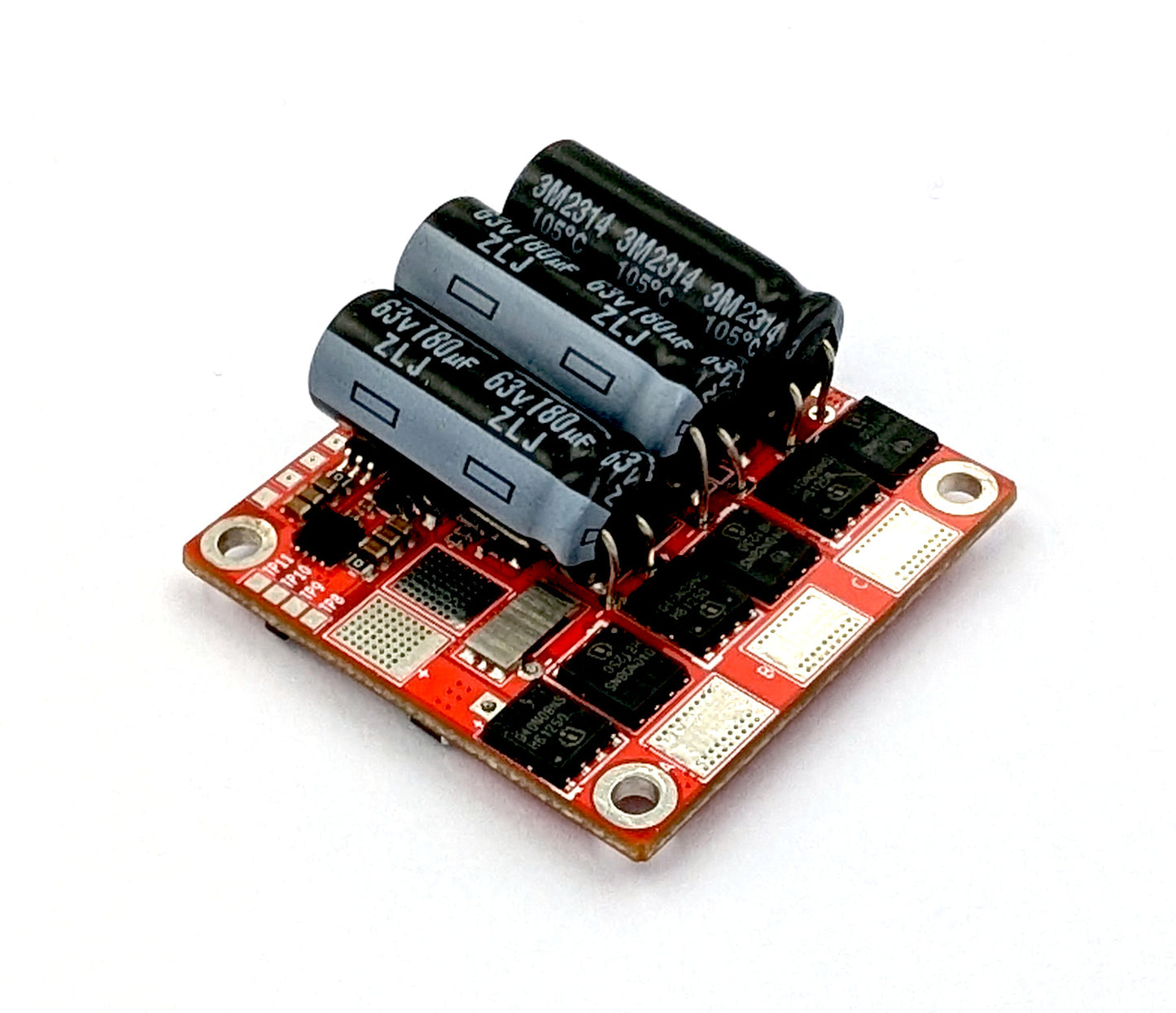

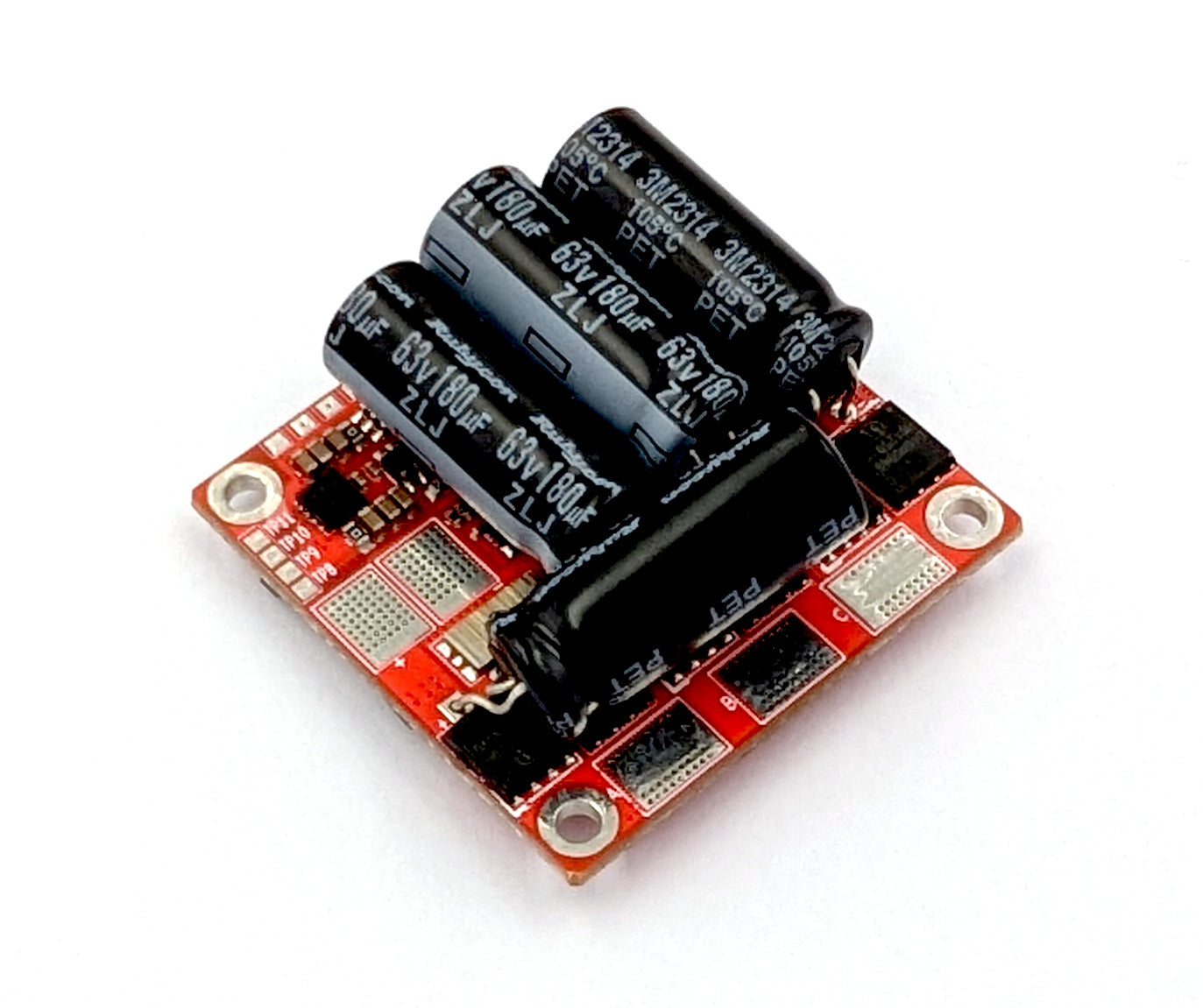

  • Bare board (variant 0) - just the conformal-coated board-level Myxa PCB. Ideal for deeply embedded applications where size and weight are critical and the environment is well-controlled.
  • Polyolefin envelope (variant 1) - this transparent polymer envelope offers insulation and some protection against abrasion.
  • Aluminum enclosure (with an embedded heat sink, variant 2) - this option should be chosen for high-power applications, or where the device is expected to operate in a high-temperature environment with reduced convection. The aluminum enclosure provides excellent protection against mechanical damage and improved heat dissipation. The mass of the aluminum enclosure is 29 grams.
View full details
  • Myxa A vs Myxa B

    Myxa A is optimized for cost-sensitive systems, whereas Myxa B targets mission-critical applications.

     FeatureMyxa AMyxa B
    ApplicationsCost-sensitiveMission-critical
    Number of CAN bus interfaces1 (non-redundant)2 (doubly redundant)
    BEC power outputN/A5 V, 0.25 A (can be disabled)
    Mass26 g27 g

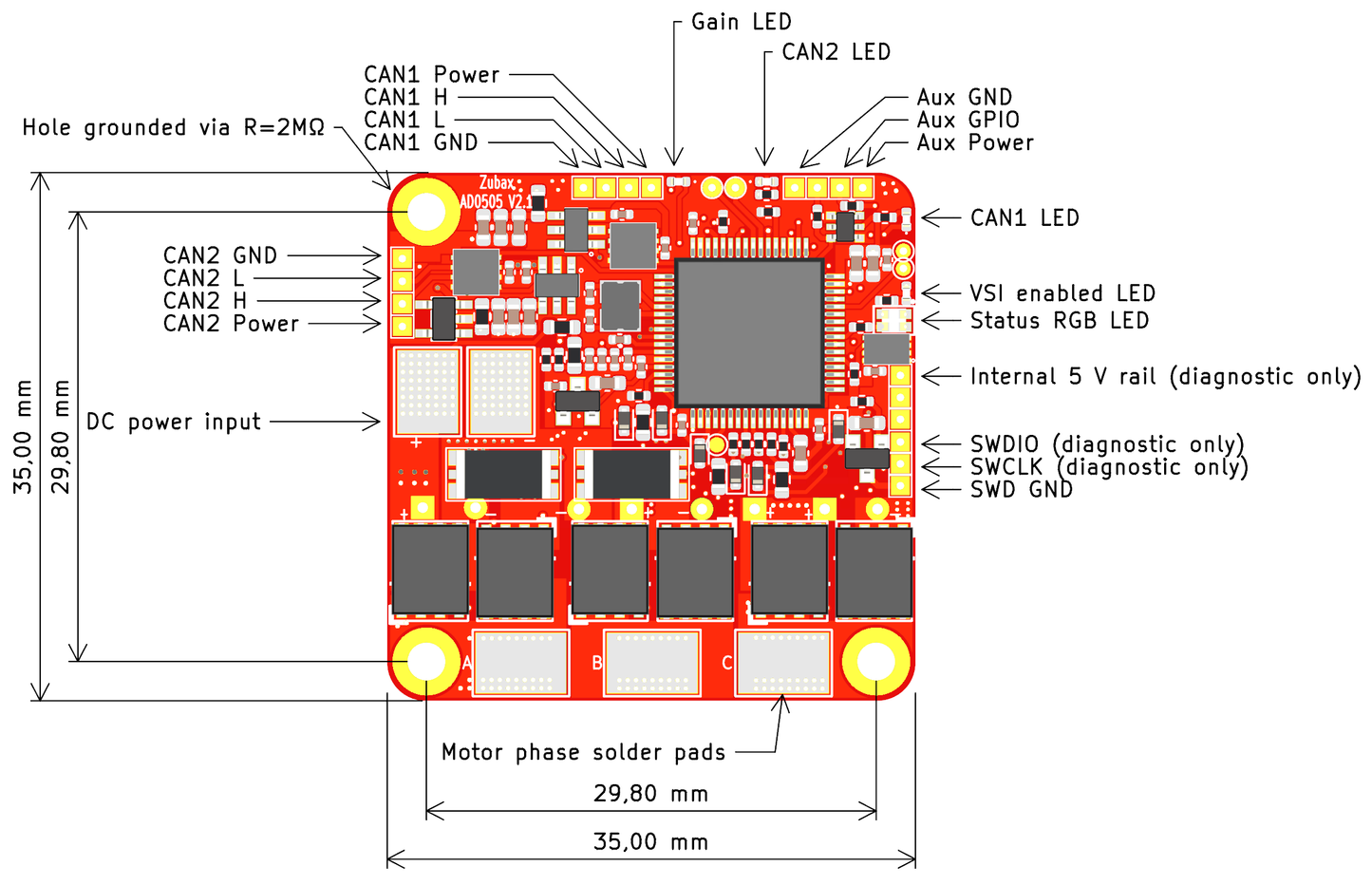

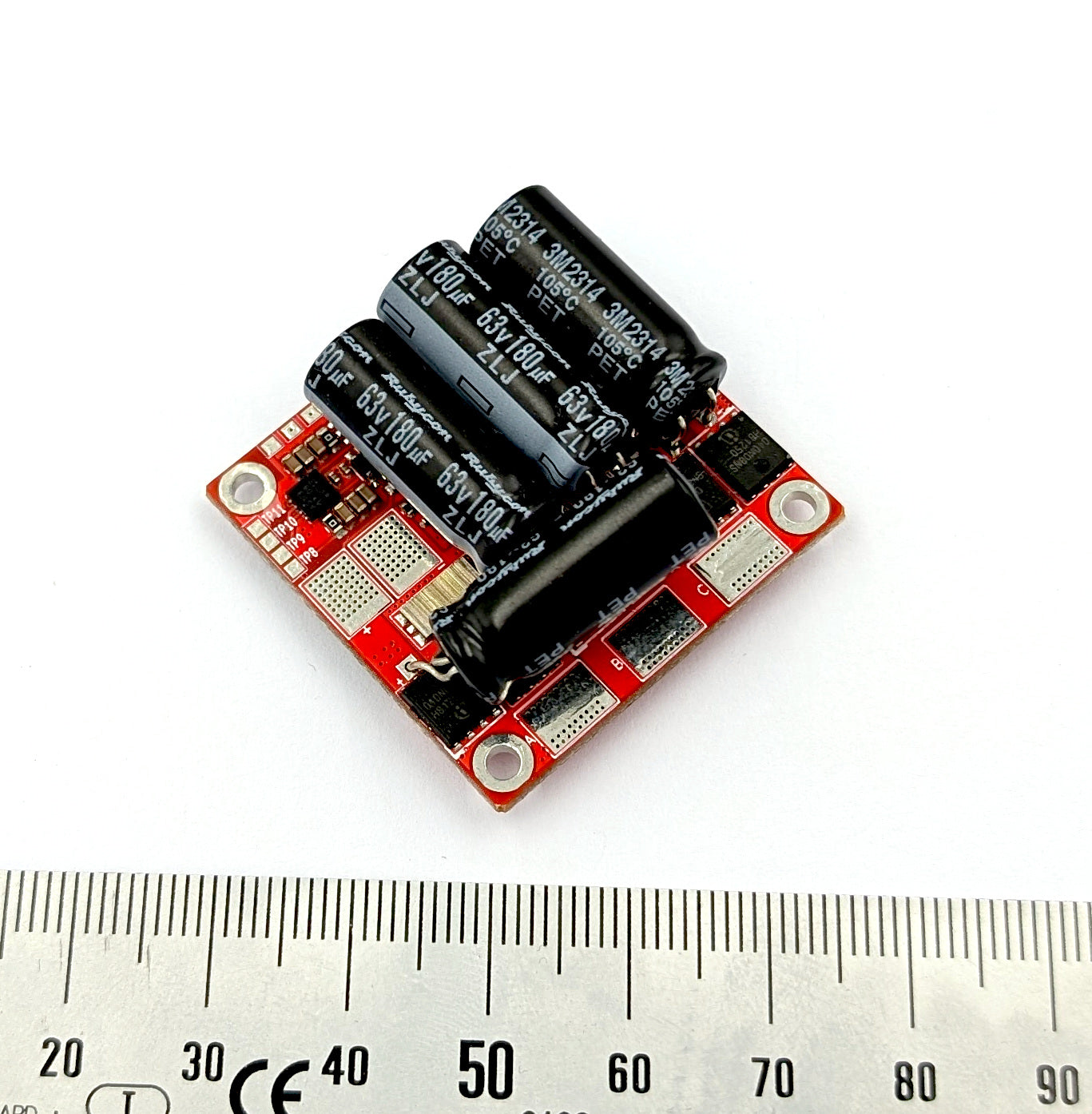

    Dimensions55✕35✕19 mm55✕35✕20 mm

  • Applications

    • Propeller and fan drives for light unmanned aerial vehicles.
    • Pump and propeller drives for unmanned watercraft.
    • Fuel pump drives for jet engines and gas turbines.

    Communication interfaces

    • CAN bus
    • RC PWM
    • Analog voltage or current control

    AmpDrive AD0505 "Myxa" is compatible with the open Dronecode Autopilot Connector Standard.


    More info is available at the product home page.
