Zubax Robotics

FluxGrip FG40 EPM

FluxGrip FG40 EPM

SKU: SKU: EPM401M

Regular price €130.00
Regular price Sale price €130.00
Sale Sold out
Model

FG40 EPM is expected to ship in late August.

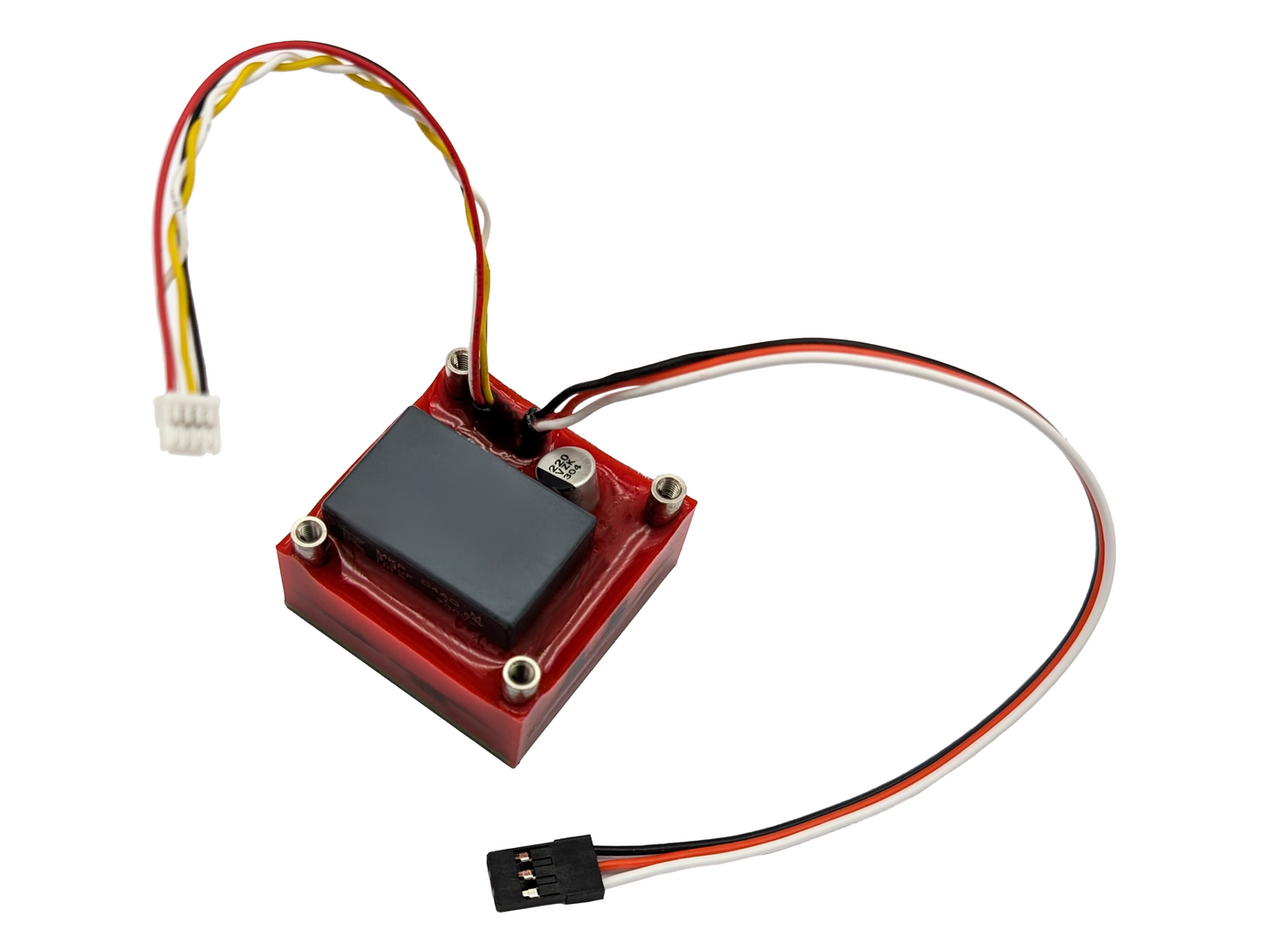

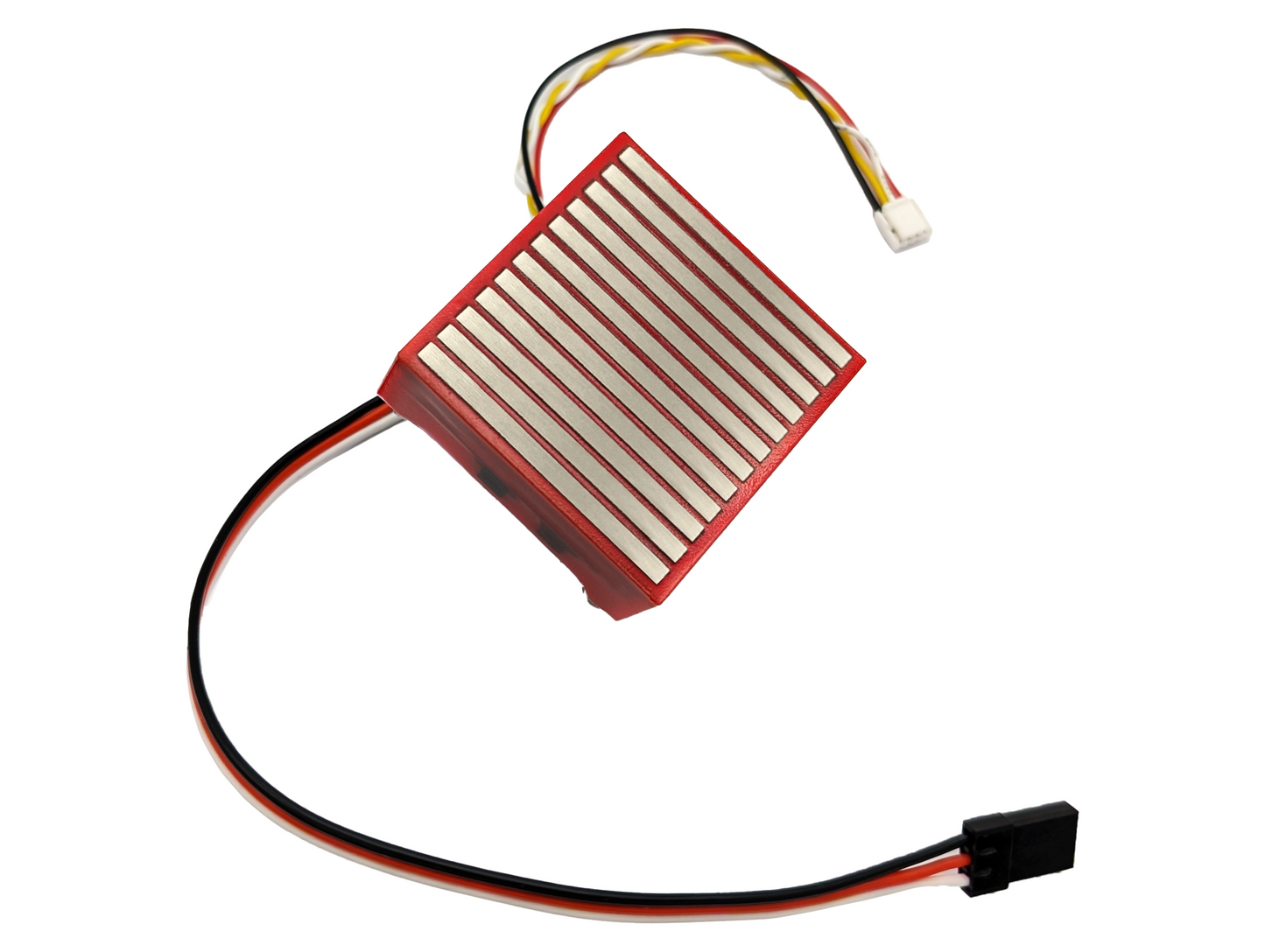

FG40 EPM is an electro-permanent magnet designed for aerospace and robotic applications. It combines the advantages of electro- and permanent magnets by being able to switch between the on-state and off-state on demand (like an electromagnet); while consuming zero power in either state (like a permanent magnet).

More info is available at the product home page.

More information

The device supports the following communication interfaces:

  • Cyphal/CAN FD control with diagnostic telemetry;
  • RCPWM control input;
  • voltage level control input;

More info is available at the product home page.

View full details
  • Variants

    Three types of EPM are available:

    • EPM401M - optimized for cost-sensitive applications.
    • EPM401MA - nearly a drop-in replacement for OpenGrab EPM v3.
    • EPM402M - optimized for mission-critical applications.
    Feature EPM401M EPM401MA EPM402M
    Mass 70 g 70 g 70 g
    Dimensions 40✕40✕30 mm 40✕40✕30 mm 40✕40✕30 mm
    Cyphal/CAN iface (non-redundant)  (non-redundant) 2 (doubly redundant)
    Analog iface No Yes No

  • Applications

    • Payload attachment in aerial vehicles.
    • Workholding in CNC machines, manipulators, and robots.
    • Magnetic locks, clamps, and holders.
