Cyphal/UAVCAN UAV Lights node v2.2.0

Cyphal/UAVCAN UAV Lights node v2.2.0

SKU: RL-LED

€109.00
€109.00
Sale Sold out

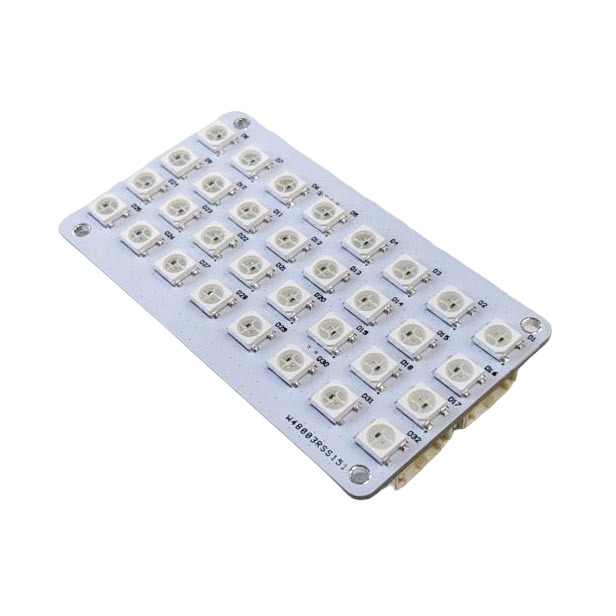

The node is designed for light unmanned aerial (UAV) and other vehicles.

The node blinks LEDs either by the command received from the autopilot or by the configured behavior. It might be used as aviation navigation lights.

The node subscribes on LightsCommand and setpoint (LightsCommand and RawCommand in UAVCAN). It works in 2 modes:

  • If the vehicle is disarmed and there is a LightsCommand, the device will process the desired command.
  • Otherwise, the device will be in configured mode.

Node supports both Cyphal and UAVCAN interfaces. Compatible with PX4 and Ardupilot-based autopilots.

Main specifications:

  • Input voltage: 5.5V – 30V

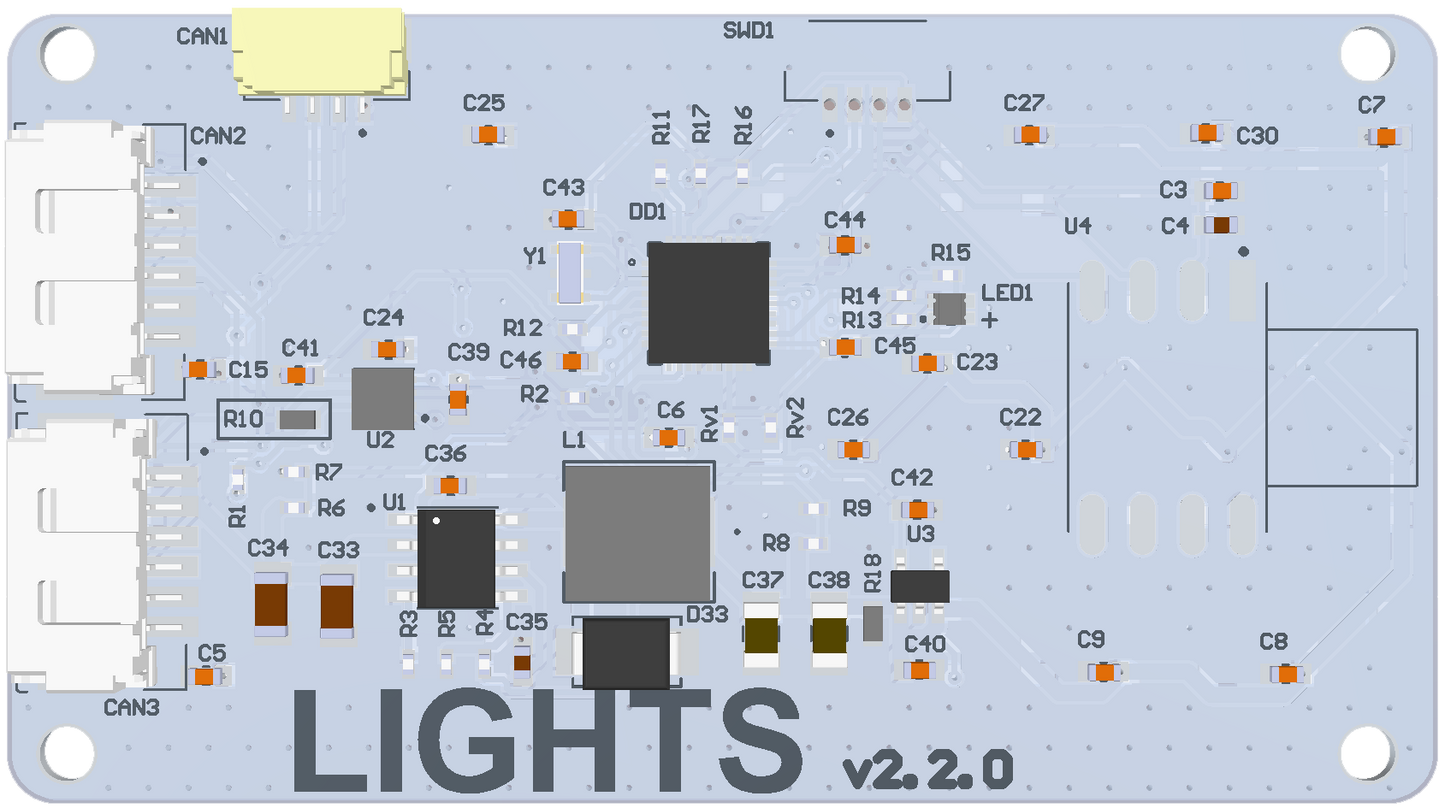

  • Connectors: UCANPHY Micro (JST-GH 4), 6-pin Molex, SWD, DEBUG, MCX
  • Weight: 14 g (with cable 49 g)

More information

Note that RaccoonLab Cyphal/UAVCAN UAV Lights node v2.2.0 ships with 1 pc JST 4-pin 0.17m cable but without any other cables. Please add the necessary cable set to your order manually. It comes with Cyphal firmware by default. If you want UAVCAN firmware, please add a note on the cart page.

Node has main and auxiliary functions.

More info is available at the product documentation page.
