DCD-Mini standard debug cable
DCD-Mini standard debug cable
SKU: SKU: CAB-DCD-M-010
Regular price
€2.90
Regular price
Sale price
€2.90
Unit price
per
Couldn't load pickup availability

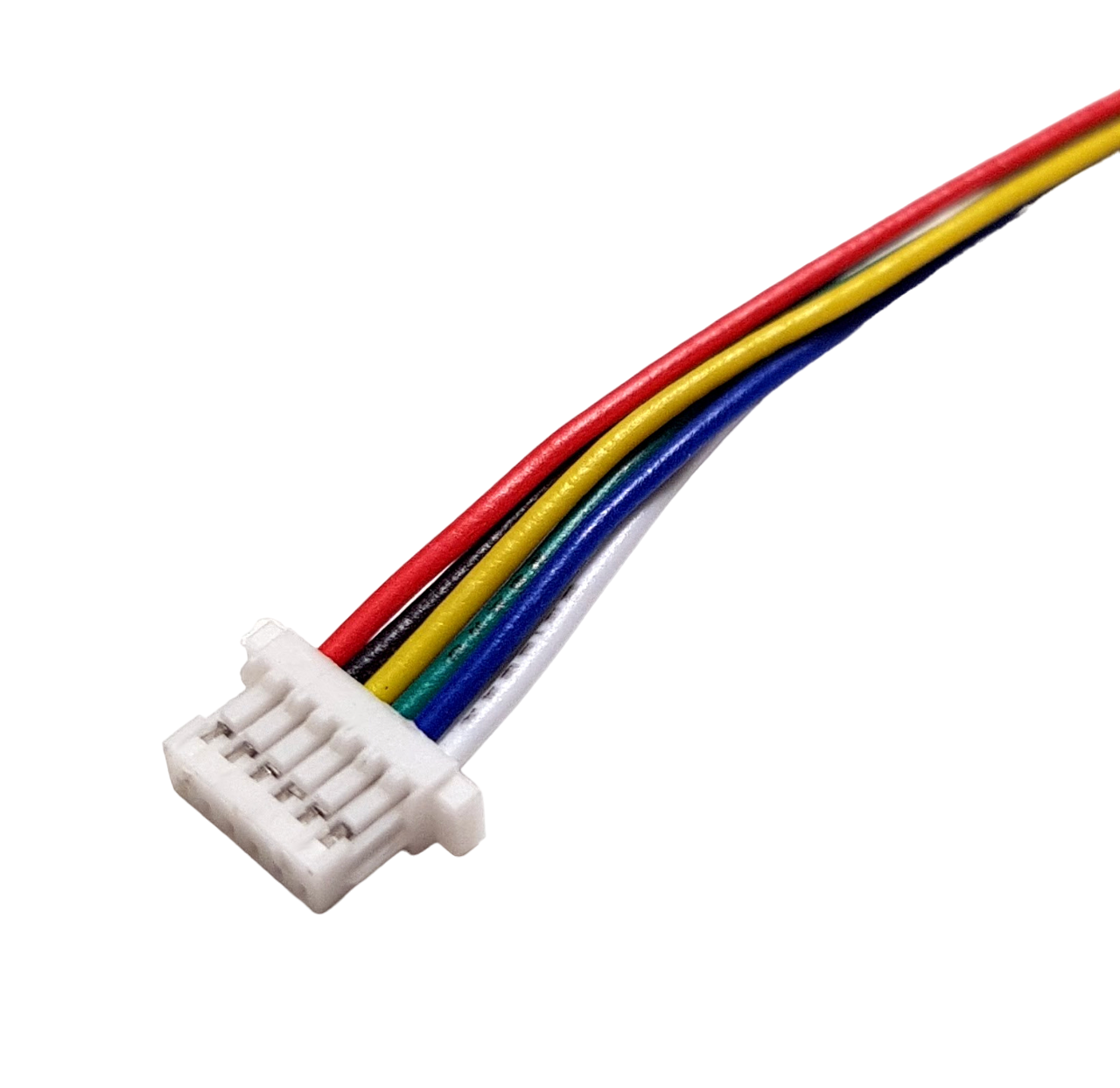

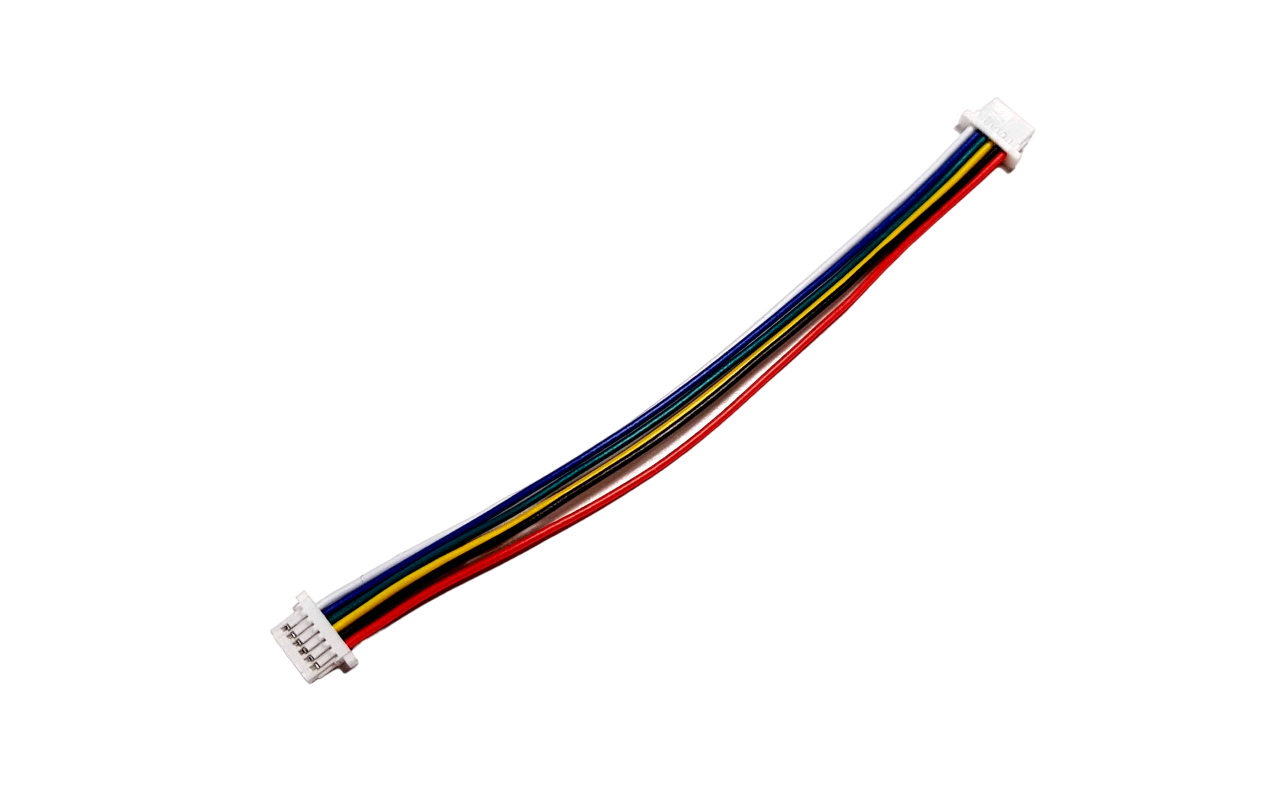

Cable with DCD-Mini plugs on both ends. Please refer to the Dronecode Autopilot Connector Standard specification for more information.
This cable type is used for interfacing with DCD-M type connectors, mostly used for debugging and diagnostics. Sometimes this interface can also be leveraged in production in deeply embedded settings.
DCD-Mini connector pinout:
| 1 | IN | TPWR |
Target power sense; can also be used to power the target. |
| 2 | IN | UART_RX |
Serial input. |
| 3 | OUT | UART_TX |
Serial output. |
| 4 | IN/OUT | SWDIO |
SWD data line. |
| 5 | OUT | SWDCLK |
SWD clock line. |
| 6 | GND | GND |
